The DS & ME METIS models of DRS & PM3D Book & Flat Bed Planetary Scanners – The Top of the Line Professional Range of Planetary Scanners for Document/s, Book/s, Atlas/s, etc. plus Fine – Art, Decor & Photograph/s up to Double A 0 + in Size

2018-DECEMBER: METIS model DRS 2000 DCS installation in Sydney

DS & ME wish to advise that a METIS model DRS 2000 DCS Extra Large Format Scanner

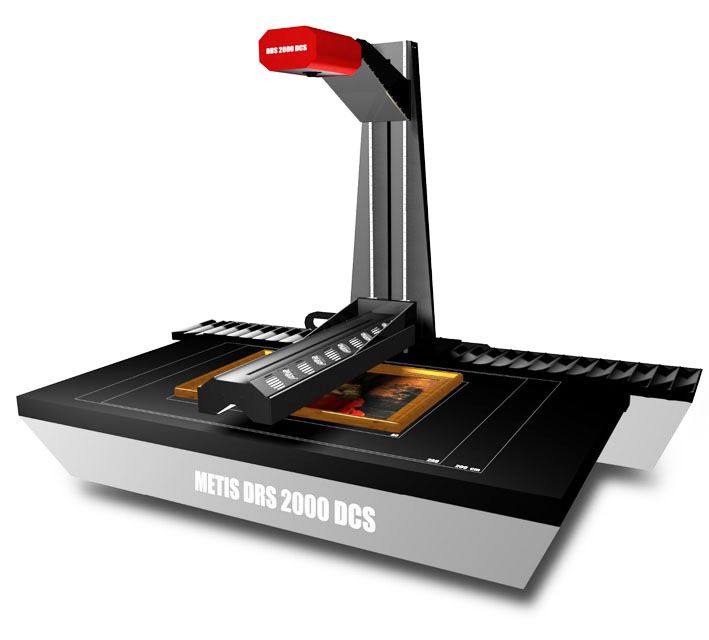

DRS 2000 DCS SCANNER 0

has been installed with

 Standish Logo

located at 277 Parramatta Road Leichhardt, NSW 2040

Phone: 02 9568 6855



Should you or your organisation have a requirement to scan any material be it Fine-Art, Decor, Drawings, Maps & Plans or Professional Cartography the METIS model DRS 2000 DCS Extra Large Format Scanner can scan material of any type up to 2000 x 1210 mm or 2 Metre by 1,21 Metre in size with a depth of field of up to 500 mm or 0.5 Metre.

Scanning of the Leonardo da Vinci Codex Atlanticus with a METIS DRS model 5070 Book Scanner

Here is the METIS YouTube Video showing the Digitisation of the Leonardo da Vinci Codex Atlanticus on the METIS DRS model 5070 Book Scanner

The METIS SYSTEMS Group of Italy manufactures a Range of Scanners for the quality scanning of Oversize Material such as Large Format - Fragile Engineering & other types of Drawing/s, Map/s, Plan /s, Papyrus, Painting/s, Photograph/s, Scroll/s, Parchment/s, & also Book/s, Atlas / s, etc. plus Fine – Art, Decor and Professional Cartography applications from the Lower Cost Entry Level METIS – EDS Planetary Book Scanner family ( Easy Digital Scanner ) portable ALPHA unit for A 3 - A 2 desktop planetary book scanning up to 300 mm = ( 11.81 Inches ) thick up to the High End Top of the Range for Professional Applications METIS – DRS Family of Scanners which can scan material up to a Maximum of 2,000 x 1,210 mm = ( 78.7 x 47.64 inches ) or over DOUBLE A 0 + in size & up to 200 mm = ( 7.874 Inches ) thick.

The METIS Range of METIS – DRS models of Scanners for Books & Large Format Documents all of which integrate a ( Patent protected technology ) the DC SynchroLight – The perfect merging between extreme quality and productivity for the most demanding market. Designed for the quality scanning of Oversize Material such as Large Format - Fragile Engineering & other types of Drawing/s, Map/s, Plan/s, Papyrus, Painting/s, Photograph/s, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications.

You may care to review the METIS Systems Group HOME PAGE – located online @ METIS Systems Group HOME PAGE

The new Metis Superscan PM3D – The revolution in surface scanning

The METIS model MP3D TRIPLE A0 Flat Bed Planetary Scanner – Showing off with the Marketing Team



metis-pm3d-carrying-a-load



0 METIS DRS 2000 DCS 2A0+ SCANNER



As used by the USA LOC – Library of Congress Washington DC Plus Numerous Museums located in China plus a Cartographic Institute in Spain plus an installation in Germany



Since the 1990′s, LOC – The Library of Congress USA has been digitizing its collections to make them accessible on the web.

Large format materials have presented special digitization challenges, including their unwieldy size and the time required to scan.

LOC is interested taking advantage of technology advances to produce high quality digital duplicates of oversize originals in an efficient manner with a minimum of handling.

Of particular interest in the context are the LOC’s large collections of oversized cartographic materials.

LOC currently uses the Metis DRS 2000 DCS Extra Large Format Drawing – Map & Plan Document pus Art Material Scanning System, which is capable of efficiently and accurately capturing oversized reflective originals of various formats and sizes up to 52 x 78 Inches =  1,321 x 1,981 Millimetres.

This scanning system is capable of capturing a digital image, regardless of the technology and engineering approach employed, as long as it meets the requirements of LOC.

The scanning system provides high levels of throughput, and will lend itself to incremental updates over time to take advantage of improved technologies.

LOC has established both information capture and imaging performance levels for the preservation digitization of these photographic originals.

The LOC has in August 2014 recently called for Solicitations for the installation of a Second Metis DRS 2000 DCS Extra Large Format Drawing – Map & Plan Document pus Art Material Scanning System,  which includes a scanner, computer workstation (s), and related software for image capture and image processing for creating high-resolution, high-quality digital images of oversized originals.

The METIS – DRS model 2000 DCS Planetary Scanner for the quality scanning of up to a Maximum Size of 2,000 x 1,210 mm = ( 78.7 x 47.64 inches ) or over DOUBLE A 0 in size & up to 200 mm = ( 7.874 inches ) thick & features a 2,500 x 1,400 mm = ( 98.425 x 55.118 inches ) holding table.

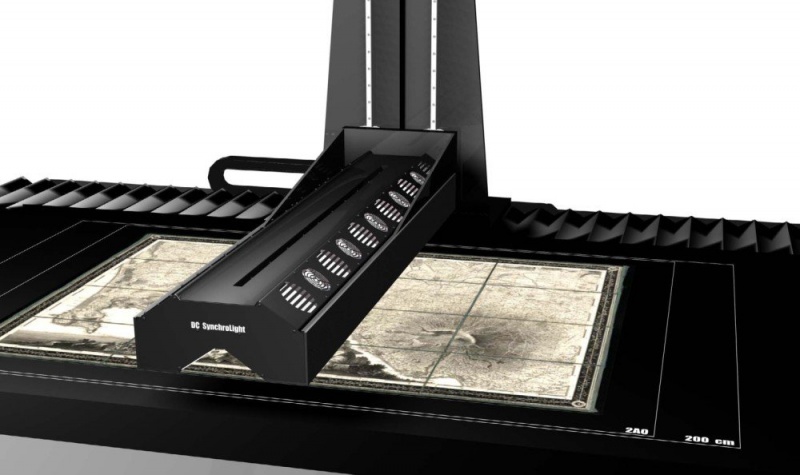

1 METIS DRS 2000 DCS 2A0+ SCANNER



As used by the USA LOC – Library of Congress  Washington DC Numerous Museums located in China plus a Cartographic Institute in Spain plus an installation in Germany

The METIS DRS 2000 DCS – Large Format Scanner for Fine-Art and Industry ( +3D )

Metis DRS 2000 DCS Extra Large Format Drawing – Map & Plan Document pus Art Material Scanning System, is capable of scanning originals up to 200x133cm and up to 50cm thick.

Optical resolution can be set at up to 1000 PPI = Pixels Per Inch.

Include the patented DC SynchroLight technology, unique METIS SuperScan mode and the METIS Light Inspector software.

The METIS – DRS model 2000 DCS Planetary Scanner is designed for the quality scanning of Oversize Material such as Drawing/s, Map/s, Papyrus, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications.

The METIS – DRS model 2000 DCS Planetary Scanner incorporates the new “DC SynchroLight” Lighting System which is LED based, ( Infra-Red – IR - Ultra Violet – UV free ) active only during the scanning process which provides for thousands of different light schematics for the Fine-Art scan mode: 3D image, post-scan light changes.

The METIS – DRS model 2000 Scanner incorporates the innovative DC SynchroLight lighting system ( Dynamically Controlled Synchronized Light ) which incorporates a new technology developed by METIS & covered by patents deposited in January 2010, which allows dynamic control of the light in the scanning area.

METIS Light Inspector Software 3D

This video show some of the features of the METIS Light Inspector software such as post-light processing, 3D Depth MAP and 3D Gradient generation.

A Brochure for the Metis DRS 2000 DCS for up to Double A 0 Plus Extra Large Format Drawing – Map & Plan Document pus Art Material Scanning System, for the quality scanning of up to a Maximum Size of 2,000 x 1,210 mm = ( 78.7 x 47.64 inches ) or over DOUBLE A 0 in size & up to 200 mm = ( 7.874 inches ) thick & which features a 2,500 x 1,400 mm = ( 98.425 x 55.118 inches ) in size holding table for the scanning of Oversize Material such as Large Format - Fragile Engineering & other types of Drawing/s, Map/s, Plan/s, Papyrus, Painting/s, Photograph/s, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications Document Scanner is available for download @ METIS DRS 2000 DCS PLANETARY SCANNER

The METIS – DRS model 1600 DCS Planetary Scanner for the quality scanning of up to a Maximum Size of 1,600 x 1,030 mm = ( 62.99 x 40.55 inches ) & up to 200 mm = ( 7.874 inches ) thick & features a 2,100 x 1,280 mm = ( 82.68 x 50.39 inches ) holding table.

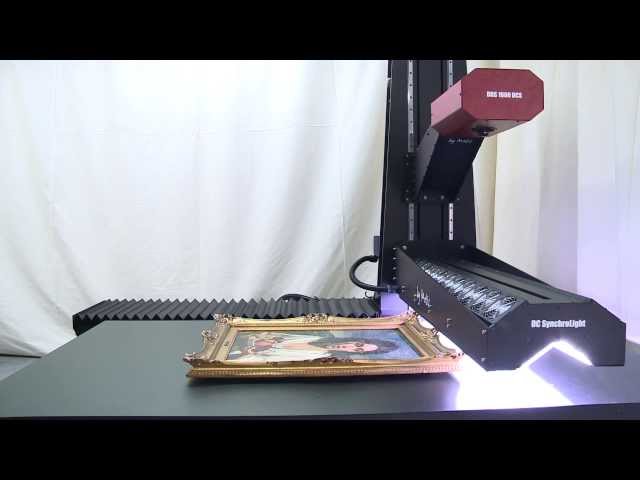

2 METIS DRS 1600 DCS SCANNER


As used by the Vatican State – Rome – Italy
Plus a Graphic Organisation located in China plus the National Library in Spain plus the Russian State Library



************

The METIS – DRS model 1600 DCS is designed for the quality scanning of Oversize Material such as Drawing/s, Map/s, Papyrus, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications. The METIS – DRS model 1600 incorporates the new “ DC SynchroLight ” Lighting System which is LED based, ( Infra-Red – IR - Ultra Violet – UV free ) active only during the scanning process which provides for thousands of different light schematics for the Fine-Art scan mode: 3D image, post-scan light changes. The METIS – DRS model 1600 incorporates the innovative DC SynchroLight lighting system ( Dynamically Controlled Synchronized Light ) which incorporates a new technology developed by METIS, & covered by patents deposited in January 2010, which allows dynamic control of the light in the scanning area.


The METIS – DRS 1600 DCS Planetary Scanner – shown Scanning a Painting

A Brochure for the METIS – DRS 1600 DCS Planetary Scanner for the quality scanning of up to a Maximum Size of 1,600 x 1,030 mm = ( 62.99 x 40.55 inches ) & up to 200 mm = ( 7.874  inches ) thick & features a 2,100 x 1,280 mm = ( 82.68 x 50.39 inches ) in size holding table for the scanning of Oversize Material such as Large Format - Fragile Engineering & other types of Drawing/s, Map/s, Plan/s, Papyrus, Painting/s, Photograph/s, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications Document Scanner is available for download @ METIS DRS 1600 DCS PLANETARY SCANNER



The METIS – DRS 1600 DCS Planetary Scanner – Touch Table and Pressure Sensors

The METIS – DRS 1600 DCS Planetary Scanner – showing Resolution and Thickness adjustment

The METIS – DRS 1600 DCS Planetary Scanner – showing Various applications ( Fine Art – Material – Cartography – Decor ETC. )

The METIS – DRS model 1300 for the quality scanning of Oversize Material such as Drawing/s, Map/s, Papyrus, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications up to a Maximum Size of 1,300 x 910 mm = ( 51.18 x 35.827 inches ) & up to 500 mm = ( 19.685  inches ) thick.

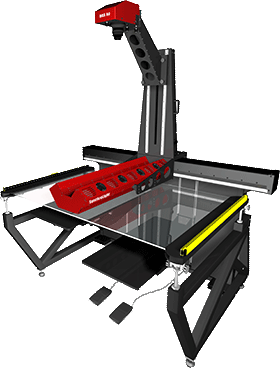

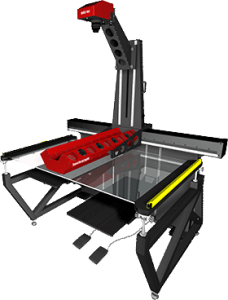

3 METIS DRS 1300 DCS SCANNER



 As used by the Vatican State – Rome – Italy Plus Numerous installations in China plus installations in Japan, France & Slovakia



************

METIS DRS 1300 DCS Large Format Scanner with integrated Book Cradle

The METIS – DRS model 1300 has an Automatic Book Cradle for books up to A 0 in size and 500 mm = ( 19.685  inches ) thick with fine pressure adjustment which is fully adjustable and user customisable.

The METIS – DRS model 1300 is a Modular system can be easily assembled - disassembled in small parts for easy transportation.



The METIS – DRS model 1300 DCS Planetary Scanner – New patented lighting technology ! The METIS – DRS model 1300 DCS Planetary Scanner was previously identified as the METIS – DRS A0.
A Brochure for the METIS – DRS model 1300 DCS Planetary Scanner for the quality scanning of up to a Maximum Size of 1,600 x 1,030 mm = ( 62.99 x 40.55 inches ) & up to 500 mm = ( 19.685  inches ) thick & features a 2,100 x 1,280 mm = ( 82.68 x 50.39 inches ) holding table in size for Oversize Material such as Large Format - Fragile Engineering & other types of Drawing/s, Map/s, Plan/s, Papyrus, Painting/s, Photograph/s, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications Document Scanner is available for download @ METIS DRS 1300 DCS PLANETARY SCANNER

The METIS – DRS model 750 for the quality scanning of Books & Large Format Documents up to a Maximum Size of 750 x 500 mm = ( 29.528 x 19.685 inches ) & up to 300 mm = ( 11.81 inches ) thick with fine pressure adjustment plus a motorized glass lifter which is fully adjustable and user customisable.





4 METIS DRS 750 DCS SCANNER

 As used by the Vatican State – Rome – Italy Plus Numerous installations in China plus installations in Switzerland, Spain & France.



The METIS – DRS model 750 is a Modular system can be easily assembled - disassembled in small parts for easy transportation.



Metis DRS 750 DCS Book Scanner


NOTE:
 The METIS - DRS model 750 DCS Planetary Scanner was previously identified as the METIS – DRS 5070

A Brochure for the METIS – DRS model 750 DCS Planetary Scanner for the quality scanning of up to a Maximum Size of 750 x 500 mm = ( 29.528 x 19.685 inches ) & up to 300 mm = ( 11.81  inches ) thick for Oversize Material such as Bound Books, plus Large Format - Fragile Engineering & other types of Drawing/s, Map/s, Plan/s, Papyrus, Painting/s, Photograph/s, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. applications Document Scanner is available for download @ METIS DRS 750 DCS PLANETARY SCANNER

Various METIS YouTube Videos

METIS EDS Book Curvature Correction YouTube Video

METIS EDS Auto Scan on finger detect YouTube Video

Metis Scanning Technology: Visual Appearance YouTube Video

Metis Scanning Technology: Glossiness MAP YouTube Video

Metis Scanning Technology: 3D Depth MAP YouTube Video

Metis Scanning Technology: High Resolution YouTube Video

Metis Scanning Technology: Natural Results

On reviewing the information listed below related to this product you may find that you wish to request a Quotation for evaluation. If you require a written quotation then please Contact Us @ DS & ME should you require a Quotation and we will respond to your request at the earliest opportunity.

For any form of microfilm aperture card, jacket, microfiche, microfilm – 16 / 35 mm Roll, micrographic & microform requirements, no matter how small or complex, please contact us via the Contact Us @ DS & ME facility at this website or email Laurie Varendorff of Digital Scanning & Microfilm Equipment – DS & ME via Email @ Laurie Varendorff & we will do everything in our power to fulfil your requirements.

For any book, drawing, map or plan plus archival document or fragile material no matter the size – e.g. less than A 5 = 148 x 210 mm = ( 5.83 x 8.27 inches ) or up to Double A 0 Plus = 2,000 x 1,210 mm = ( 78.7 x 47.64 inches ) – which requires Scanning, Digitising = Digitizing & or Imaging for your Digitisation Projects, no matter how large or small then contact Laurie Varendorff via email @ Laurie Varendorff ARMA; or Phone: Australia @ 0417 094 147 – International @ +61 417 094 147 at Digital Scanning & Microfilm Equipment – DS & ME.

Laurie will be able to advise if DS & ME has the specialised equipment available for the Scanning, Digitising, & or Imaging for your project from a minimum size of A 6 = 148 mm in width by 105 mm in height up to a maximum size of DOUBLE A 0 or 2,540 mm in width X 915 mm in height = ( 100 X 36 inches ) for Oversize Material such as Fragile Document/s, Map/s, Plan/s, Engineering or other types of  Drawing/s or Book/s required to meet a prospective client’s individual requirements.

In addition to the Low Entry Level METIS EDS Range of ALPHA & GAMMA Book & Flat Bed Scanners the METIS Range also includes the TOP OF THE LINE  for Professional Applications METIS – DRS models of Flat Bed Scanners for Book/s & Large Format Documents which can scan material up to a Maximum of 2,000 x 1,210 mm = ( 78.7 x 47.64 inches ) or over DOUBLE A 0 + in size & up to 200 mm = ( 7.874 inches ) thick all of which integrate a ( Patent protected technology ) the DC SynchroLight – The perfect merging between extreme quality and productivity for the most demanding market. Designed for the quality scanning for Digitisation Projects of Oversize Material such as Drawing/s, Map/s, Papyrus, Scroll/s, Parchment/s, & also Book/s, Atlas/s, etc. plus Fine – Art, Decor and Professional Cartography applications.

In addition the METIS Systems Group now have added the METIS SUPERSCAN PM3D the first industrial scanner able to acquire Colour and 3D surface embossing based on new METIS PM3D® technology ( Patent protected ).

The SUPERSCAN PM3D ® is the first scanner to breach the resolution limits caused by the number of pixels in the imaging sensors thanks to an innovative opto-mechanical design that allows a native optical resolution of 1200PPI on the full scanning area ( 2,000 x 1,300 mm ).

Thanks to the Scan Merge tool scanning very large originals (exceeding the scanning area) is now also possible with perfect results. The SUPERSCAN PM3D ® adopt the new METIS Scan Director software that have been designed specially to fulfil the requirements of the industrial, fine-arts and decorative markets and for handling 3D data.
