The DS & ME – MICROTEK model LS-3700 – A1 Size Flatbed – Large Format Scanner for Drawings, Maps, Plans & Fragile Documents

Digital Scanning & Microfilm Equipment – DS & ME are pleased & enthusiastic to be able to announce that DS & ME has been appointed as the SOLE Distributor for the MICROTEK model LS-3700 – A1 Size Flatbed – Large Format Scanner for Drawings, Maps, Plans & Fragile Documents by Microtek International, Inc. of Taiwan for the Australian, New Zealand & Oceania market.

DS & ME SOLE Distributor Certificate for the – MICROTEK model LS-3700 – A1 Size Flatbed – Large Format Scanner

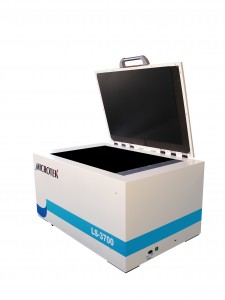

LS3700 Image with Lid Open

 Microtek LS-3700 A1 Size Large Format Flatbed Scanner DIN A1 - 940 x 635 mm = 37 x 25 inches in Operation

Click on this text to download a Brochure of the MICROTEK model LS-3700 – A1 Size Flatbed – Large Format Scanner for Drawings, Maps, Plans & Fragile Documents by Microtek International, Inc. of Taiwan.

The Microtek LS-3700 is a flat and large-format scanner which supports a scanning area up to larger than DIN A1 - 940 x 635 mm = 37 x 25 inches which is over US D Size,  and perfect for scanning large documents, such as color posters, architectural drawings, industrial and construction blueprints.

Print

Moreover, it is also fit to scan clothes, textiles, hanging charts, bounded books, fragile materials, fine arts, and other exquisite originals.

MICROTEK A1 FlatBed Scanner

SAMPLE SCANNED IMAGES

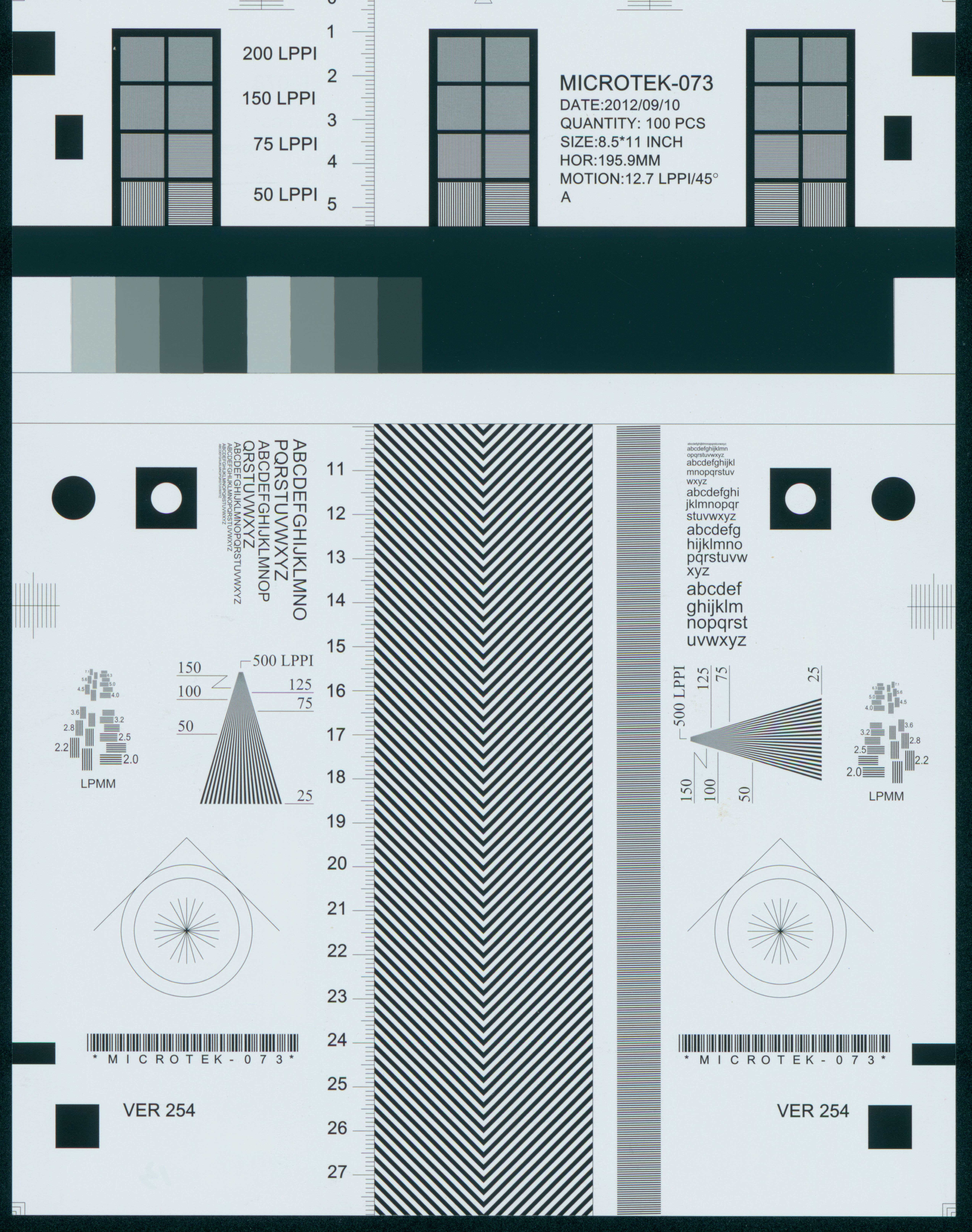

A1 Flatbed Scanner Test Target @ 600dpi

A1 Flatbed Scanner Test Target @ 600dpi – CLICK ON – THE IMAGE ABOVE TO ENLARGE IT

MICROTEK LS-3700 – 600 DPI A3 + A1 TARGET SCAN

MICROTEK LS-3700 – 400 DPI A3 + A1 TARGET SCAN

MICROTEK LS-3700 – 300 DPI A3 + A1 TARGET SCAN

MICROTEK LS-3700 – 200 DPI A3 + A1 TARGET SCAN

MICROTEK LS-3700 – 150 DPI A3 + A1 TARGET SCAN

A1 Flatbed Scanner COLOUR Test Target Q13 @ 600dpi

Fan Default Color @ 600dpi

Carpet 1 Quarter Size Default Color @ 600dpi

The LS-3700 has a color CCD with an optical resolution of 600 dpi, ensuring superior imaging performance.

The two-way LED light source decreases shadows caused by uneven surfaces of the scanned object and makes the scanner ready to start immediately when it is powered on, requiring zero warm-up time.

Users only need to put originals to be scanned on the glass surface and then they can easily get clear images.

The Large Format Flatbed is designed for a wide variety of documents and objects

With a large format flatbed design, LS-3700 is perfect for scanning large or thick papers, fragile materials, clothes, textiles, hanging charts, bounded books and other originals.

The Two-way LED light source decreases the shadows of images

Two-way LED light source decreases the shadows of images

Equipped with the two-way LED as its light source the LS-3700 can efficiently decrease shadows caused by uneven surfaces of the scanned object and therefore ensures clearness and lifelikeness of scanned images.

When powered on, there is no warm-up time required for LS-3700 and it can start scanning immediately, which fits to the popular ecological trend.

The LS-3700 has a One CCD Design with no image stitching

One CCD design, no image stitching

Equipped with a large-scale image sensor the LA-3700 can scan areas up to larger than DIN A1 - 940 x 635 mm = 37 x 25 inches which is over D Size US preventing colouring errors generated by different image sensors and merging errors for image stitching caused by software

10 mm Depth Of Field – DOF for scanning uneven objects

10 mm depth of field for scanning uneven objectsThe Depth Of Field – DOFfor the LS-3700 is up to 10 mm, which is convenient for users to scan heavy or thick objects and still keeps scanned images vivid and clear.

Industrial Transmission Machinery

Industrial Transmission Machinery

The LS-3700 adopts industrial transmission machinery and sets the belt at middle; thus, calibrators can be moved smoothly, reducing scanning noise and improving scanning quality.

Convenient casters for easy movement and stationary

Convenient casters for Easy of Movement and LockingEquipped with four levelling casters the LS-3700 can be moved easily.

The four levelling casters are also helpful for the installation or adjustment of the machine.

Moreover, the four levelling casters bring users conveniences when scanning special objects or cleaning the machine.

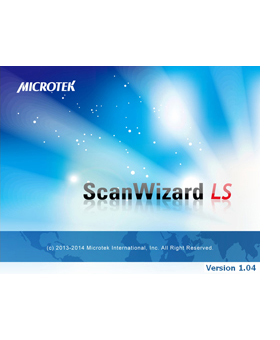

Includes easy-to-use ScanWizard LS software

easy-to-use ScanWizard LS software

  • Presents instant scan-to-display images
  • Allows to create customized scan settings for further use
  • Displays scanner information for equipment controls and maintenance

Main or sub windows can be opened / closed individually

  • Supports full and customized size scans
  • Allows the option to magnify a partial image at 100% size for image inspection
  • Supports instant preview for the rotated image
  • Automatic file naming
  • Adjustable brightness / contrast / saturation
  • Adjustable gamma / white and black color levels
  • Supports automatic calibration
  • Supports various types of CMS profile



INSTALLATIONS



The National Land Surveying and Mapping Center of the Ministry of the Interior of the Republic of China – Taiwan was one of the initial installers of the MICROTEK model LS-3700 – A1 Size Flatbed – Large Format Scanner for Drawings, Maps, Plans & Fragile Documents
